For Sale - Parts and Accessories
To buy an item send an email with the item, and your name, address, and telephone number: I will then send you an invoice to your email address for the item plus shipping costs......you can pay by credit card, PayPal, or Zelle bank transfer. Shipping will be by the most economical method based upon weight and size and insurance: USPS First Class Package ($5 & up); USPS Priority Mail ($9 & up); or for large & heavy items FedEx Home Delivery/Ground.
DCC COMPONENTS AND ACCESSORIES
DCC SPECIALTIES RRampMeter IV - MEASURES DCC/DC/AC VOLTS & AMPS "The Essential Tool" for Large G Scale Model Trains Hobbyists"
Accurately measures DCC, AC and DC Volts and Amps! DCC - 38.6 V, 18-20 A; DC - 38.6 V, 18-20 A; AC - 27.6 V, 18-20 A; PCB length 5.63"; Enclosure length
4", width 2", height 1.25" The amazing RRampMeter designed for Model Railroaders by DCC Specialties does what no other meter can do! Easy walk-
around measurements of layout voltage drops, accurate booster output setup to optimum voltages for decoders and sound units.
Measuring PWM Voltage - Manufacturer's Technical Response
The RRampmeter should accurately measure a PWM waveform. After all, DCC is a form of PWM. However, the RRampmeter reads the TOTAL RMS value of the waveform, DC + AC. Your Fluke set to read AC blocks DC and is only measuring the AC component. Since the lights and smoke unit are going to respond to the DC value of the PWM (and I assume the PWM is on/off, so there is a DC component), you should measure these outputs with the Fluke meter set to DC. One other thing to keep in mind is that the RRampmeter is designed to power itself from the input, so on a low power circuit such as a light output, the added load may affect the reading. Make sure you are using the battery for power and not the input signal. Even with the battery, the RRampmeter will load the circuit more than the Fluke (25.4K vs 10 Meg). For this reason, the Fluke set to read DC might be the better choice.
ESU DCC COMPONENTS
CONTRACT ME TO ORDER ANY ITEM FROM THE ESU PRODUCTS WEBSITE
ESU 58513 LokSound 5 XL DCC/MM/SX/M4/RailComPlus. Outstanding sound quality with 1 - 28 sound F Key options.
4 Amp Sound Decoder, Screw Terminals, Power Caps. Customer's Selected Sound File Will Be Installed onto Decoder. Complete ready-to-install decoder setup for your specific LGB locomotive's lights and smoker voltage and motor control, and operationally tested on my DCC test stand - $30 Fee. A wiring diagram for your LGB locomotive installation also provided.
Size: 62mm x 40mm x 12mm
$195 - In Stock
ESU 53451 LokProgrammer Module to Program CVs, Load ESU Sound Files & Operationally Test Decoders Installed in your LGB Locomotives. Connect to your Windows-based PC; for G scale decoders, use 2 Amp minimum DC Power Supply, maximum 20 Volts.....you can't use the small power supply included with the LokProgrammer. To install the sound files and setup an ESU 5XL sound decoder, you you use the LokProgrammer to set the locomotive's motor type, output terminals' voltage for lights and a smoker, whistle and bell sound options, etc. It's also required to set up and connect a Massoth Pulsed Smoke Generator.
$155 - In stock - 3 each Available
Note: These were ordered and shipped from Germany

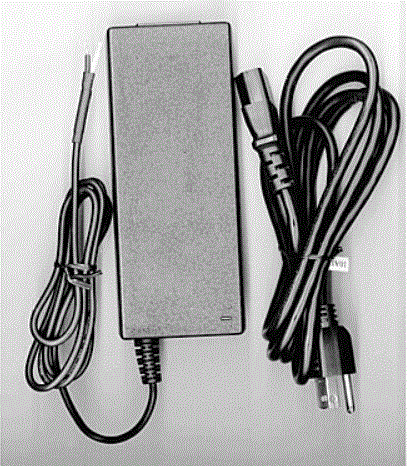

Massoth 8135301 19 Volts 4.7 Amps DC Switching Power Supply - Use for the ESU LokProgrammer Module, the Massoth PC Programming Module, and the Piko Central Station shown below.
ESU 58315 LokSound 5 L DCC/MM/SX/M4/RailComPlus. 3 Amp Sound Decoder with outstand sound quality. Comes with a Solder Terminals Adapter Board, or you can purchase the ESU 53950 Screw Terminals Adapter Board. Sound File Will be Installed into Decoder from ESU Sounds Library.
Size: 51mm x 25mm x 14mm
$160 - In Stock
ESU 58315 LokSound 5 L 3 Amp Sound Decoder with Programmed CVs & Wired Adapter Board: LGB Motor Block Wires; Headlight; Cab Light; Rear Light; Smoke Unit; Speaker. Size: 51mm x 25mm x 14mm
$195 - In Stock
ESU 53950 Adapter Board with Screw Terminals for LokSound L & LokPilot L Decoders. For Use with Decoders: 59315 LokPilot 5L DCC/MM/SX/M4; 59325 LokPilot 5L DCC; 58315 LokSound 5L DCC/MM/SX/M4; 58325 LokSound 5L DCC Sound; 54399 LokSound V4.0 L DCC; 73399 LokSound Select L DCC Sound Decoder.
Size: 78mm x 26mm x 12mm
$23 - In Stock
ESU 59325 LokPilot 5 DCC/RailComPlus. Locomotive/Motor/Function Decoder, Pin-head comes with Solder Adapter Board. Or, purchase ESU 53950 Screw Terminals Adapter Board. 4 Amp Motor Rating; BEMF; 11 Amplified Outputs; 4 Logic-level Outputs; 2 Servo Outputs; DCC with RailComPlus.
Size 51.8mm x 25.4mm x 14mm
$70 - In Stock
ESU 54640 LokPilot XL V4.0 DCC/MM/SX/M4/RailComPlus. 4 Amp Locomotive/Motor/Function Decoder, Screw Terminals, Power Caps. With its high motor-output performance, 8 function and 4 servo channels as well as an integrated PowerPack it is perfectly suited for outdoor railway and large scales.
Size: 65mm x 25mm x 11mm
$76 - In Stock
ESU 51959 Adapter Board with Solder Terminals for LokSound L & LokPilot L Decoders. For Use with Decoders: 59315 LokPilot 5L DCC/MM/SX/M4; 59325 LokPilot 5L DCC; 58315 LokSound 5L DCC/MM/SX/M4; 58325 LokSound 5L DCC Sound; 54399 LokSound V4.0 L DCC; 73399 LokSound Select L DCC Sound Decoder.
Size: 62mm x 26mm x 11mm
$21 - In Stock
ESU 54677 Smoke Unit Dual Exhaust for Smoke Stack & Cylinders
$95 - In Stock
ESU 51963 Miniature Relay 1A 12 - 16 Volts. Use for Activating Whistle & Bell Reed Switch Sounds with DCC Decoders & LGB Analog Sound Boards. Ask for Copy of Wiring Diagram when Ordering.
$4 Each - In Stock
ESU 51830 SwitchPilot V2.0, Accessory Decoder for 4 Twin Coils Magnetic, 2 x Servo, DCC/MM, 1A
$40 - In Stock
ESU 51801 SwitchPilot Extension 4 twin-relays (DPDT) Output, 2A each, Use with SwitchPilot to Operate LGB Track Swtich Motors
$30 - In Stock
Wiring Schemea for Using the SwitchPilot and SwitchPilot Extension to Operate an LGB Track Switch Motor
ESU 50119 DC Power Supply 7 Amps 15 - 21 Volts
The newly developed power pack 50119 is furnished with the ESU Command Stations (ECOS and CabControl Digital Systems) and the ECOSBoost booster. It can be used with any model trains accessories that require powerful DC power supply with a power output of 15 - 21 volts DC such as the LGB Throttles/Controllers. The output voltage can be adjusted between 15V and 21V by a turn knob on the back of the unit and remains stable under load. The output current has a maximum capacity of 7 Amps. An integral, temperature controlled fan provides cooling, if necessary. The power pack automatically switches off in case of a short circuit or overload and restarts once the overload has been eliminated.
A connector plug is provided for use with accessories using wire connections.
$80 - In Stock
ESU 54672 Power Pack Maxi energy storage device (Power Caps) for LokSound L V4.0, 5L, and 5 Series, and LokPilot 5, 5L, and 2x 5F/2.7v. Note: The Power Pack switches off automatically in Analog operating mode for technical reasons, so no power buffering is possible in Analog Mode. Size: 27.5 mm x 15.7 mm x 13 mm
$55 - In Stock
ESU DCC COMMAND STATIONS
ESU 50310 CAB CONTROL DCC SYSTEM - Touch-Screen WiFi Throttle, 15 - 22 Volts, 7A Power Supply - Everything you need to set up a DCC operated track layout for your DCC Decoder-equipped LGB locomotives. With the 22 volts 7 amps DCC current it provides to your track layout, you can run multiple LGB locomotive consists and operate your LGB track switches through DCC switch decoders, all at the same time. It also has a separate output terminal for a Programming Track where you can Read and Write CVs on your locomotive's DCC decoders. Features: Two Output Terminals, one for the Track Layout & another for the Programming Track; the RailcomPlus feature automatically reads decoders with Railcom-equipped decoders and then populates the command station automatically - No need to assign and use a locomotive address (CV1).
MSRP $500; Your Price $400 - In Stock
As a multi-protocol command station, ECoS supports DCC, Märklin® Motorola®, Selectrix® and the M4 data protocol. M4 drives and controls locomotives equipped with mfx® decoders without any restrictions. M4 is completely compatible. You can even continue to use almost all of your present loco decoders. ECoS is therefore the only digital command station worldwide that unifies 4 data protocols. Features: Two Output Terminals, one for the Track Layout & another for the Programming Track; RailcomPlus automatically reads decoders with RailcomPlus and populates the command station - No need to assign a locomotive address (CV1).
With an ECoS you can run locos: via two integrated cabs with large, easy-grasp motor driven throttle knobs and nine precise click-function keys you control your locos. In combination with the touch screen, you can control up to 20 functions per engine.
ECoS controls turnouts and magnetic accessories: a large, graphical control panel provides you access for up to 1420 turnouts (DCC or Motorola® protocol).
With ECoS you can plan and control routes: simply put turnouts and magnetic accessories graphically in groups and switch them together. Routes will be activated either by feedback contacts or by key. You can even use s88 occupancy detectors or ECoSDetector feedback modules.
With ECoS you can operate shuttle trains very easily: put a rail contact at both ends of the track and ECoS will do the rest. The ECoS built-in booster has so much power that, in most cases, you don‘t need additional ones.
Comes with an ESU 7 Amp 21 Volts DC Power Supply
For wireless use, you must purchase the ESU Mobile Controller II shown below.
MSRP $799.90; Your Price $675 - On Backorder at ESU LLC USA
ESU 50114 Mobile Controller II for Wireless Operation of the ECoS Command Station - Connects to y our home's WIFI Router or Set Up a Dedicated Wireless Router in Your Train Room or Outdoors.
MSRP $300; Your Price $240 - In Stock
ESU 50012 ECOS BOOST H4-Booster with 7.0 A continuous-load output. Outputs short circuit proof. Thermal overload protection. Galvanically isolated EcoSlink connection. Integrated NMRA DCC BiDirection feeback detector with cutout device. Integrated mfx® feedback device (Enabled only when used together with Märklin® central station®). Operational modes: Use with ESU ECoS or Märklin® central station®. Supported protocols (depends from command station): NMRA DCC, Motorola®, Selectrix®, mfx®. 180 x 76 x 40 (7.09 x 2.99 x 1.75 inch). CoSBoost comes with its own 7 Amps continuous-load output, power supply 120-240VA, terminals for track- and programming connection, extensive instruction manual.
MSRP $289; Your Price $230 - In Stock
SOUNDTRAXX DCC COMPONENTS FOR LARGE SCALE LOCOMOTIVES
The Soundtraxx Tsunami2 TSU-4400 (4amp) and TSU-2200 (2 amp) DCC sound decoders have over 50 different sound effects and provide excellent sound qualities, including 90 different whistle sounds and 50 different bell sounds built into the decoder, all programmable by CV settings. After you install the decoder into your locomotive, it's important to calibrate the Dynamic Digital Exhaust (DDE) feature which provides load control and greatly enhances the quality of the chuff sounds. See the video on my Website of the LGB 2050 Steam Tram install I completed for a customer that demonstrates the excellent chuff sounds when DDE is activated. The procedures is Soundtraxx Steam User Guide, Configuring Dynamic Digital Exhaust on page 52.
Tsunami2 TSU-4400 4 Amp, 6-Function DCC/DC Sound Decoder for Large Scale Trains. Excellent 3 Watts Amplifier Sound Quality. Programmable Automatic Sounds for whistle, bell, etc. Requires 8 Ohm Speaker. Available Decoder Versions for American Locomotives: Steam; EMD Diesel; GE Diesel; ALCO Diesel; Baldwin Diesel; EMD-2 Diesel; Electric. Size: 69x31x14mm
Your Price $151
Tsunami2 TSU-2200 2 Amp, 6-Function DCC/DC Universal Steam Sound Decoder for smaller LGB Olomana & Chloe Steam Locomotives - Install into rear water/fuel bunker. Excellent Sound Quality. Programmable Automatic Sounds for whistle, bell, etc. 35x18x6mm
Your Price $100
CurrentKeeperII Rechargeable Capacitor. Connects to Soundtraxx DCC decoders to provide power over dirty track and switches. Size: 20x13x11mm
Your Price $24
CurrentKeeper Rechargeable Capacitor. Connects to Soundtraxx DCC decoders to provide power over dirty track and switches. Size: 40x6x11mm
Your Price $24
MD-ELECTRONICS FROM GERMANY - DCC COMPONENTS FOR LARGE SCALE TRAINS
CONTRACT ME FOR A PRICE QUOTE TO SPECIAL ORDER ANY ITEM IN THE CATALOG
