ESU LOKSOUND & LOKPILOT DCC SOUND
DECODERS, COMPONENTS AND ACCESSORIE

FOR G SCALE TRAINS



To buy an item send me an email with the item, and your name, address, and telephone number:  I will then send you an invoice to your email address for the item plus shipping costs......you can pay by credit card, PayPal, or Zelle bank transfer.    Shipping will be by the most economical method based upon weight and size and insurance:  USPS Ground Advantage ($4.50 minimum); USPS Priority Mail Insured ($8 and up); or for large & heavy items FedEx Home Delivery/Ground.

ALL ITEMS ON THIS PAGE ARE IN STOCK & AVAILABLE FOR PURCHASE UNLESS MARKED OTHERWISE

ESU LLC USA TECHNICAL SUPPORT CONTACT:   Frank at suport@loksound.com or 570-980-1980, Tuesdays & Thursdays

NOTE:  ESU LLC USA provides excellent warranty customer service for their products which have a 24 months warranty coverage

ESU Catalog 2023.png
ESU 58513 LokSound 5 XL Screw Terminals.

ESU DCC DECODERS





ESU LokProgrammer_01.jpg

ESU 58513 LokSound 5 XL DCC/MM/SX/M4/RailComPlus.  Outstanding sound quality with 1 - 28 sound F Key options.
4 Amp Sound Decoder for one or two motor locomotives.  Screw Terminals, Adjustable Power Caps.   Customer's Selected Sound File Will Be Installed onto Decoder without charge.  Complete ready-to-install decoder setup for your specific LGB locomotive's lights and smoker voltage and motor control, and operationally tested on my DCC test stand motor block - $55 Fee.  A wiring diagram for your LGB locomotive installation and the F Key Listing for the installed sound file are also provided.  Note:  The Reed Switch function on these decoders does not work well, so they are not suitable for DC powered engines.
Size:  62mm x 40mm x 12mm
$195 -  In Stock



ESU 53452 LokProgrammer Module
Used to Program CVs, Load ESU Sound Files & Operationally Test Decoders Installed in your LGB Locomotives.  Connect to your Windows-based PC; for G scale decoders, requires 2 Amp minimum DC Power Supply, maximum 20 Volts.....you can't use the small 1 Amp power supply included with the LokProgrammer.  LokProgrammer is required to install the sound files and setup an ESU 5XL sound decoder's locomotive's motor type, output terminals' voltage for lights and a smoker, whistle and bell sound options, etc.  It's also required to set up and connect a  Massoth Pulsed Smoke Generator.   Note:  Search YouTube for the ESU tutorials on using the LokProgrammer.

$145 - In Stock











Massoth Speaker 8241030 70mm 2 Watt 8Ohm
Massoth 8442000 New Auto Uncoupler.png

GO TO THE SPEAKER PAGE TO VIEW ALL SPEAKER SIZES AVAILABLE FOR USE WITH DCC SOUND DECODERS:  Massoth; ESU; Visaton; ML-Train, etc.

















Massoth 844200 Automatic Switching Coupler.  This is the new, upgraded version.
$65 each or $120 for 2 Pack
These Auto Couplers can be used with most DCC decoders.....see the video demonstration using the coupler with an ESU 5XL DCC Sound Decoder and the neat coupler sound from the decoder.

Massoth 8135301 Power Supply.jpg

Massoth 8135301 19 Volts 4.7 Amps DC Switching Power Supply - Use for the ESU LokProgrammer Module, the Massoth PC Programming Module, and the Piko Central Station shown below.
$60 - In Stock




ESU 58429 LokSound 5 DCC Sound Decoder 21MTC Interface.png
Marklin 66367 DC Power Supply 18v. 2 Amps (2).png

Marklin 66367 18 Volts 2 Amps DC  Switching Power Supply.  Use with the ESU LokProgrammer Module and Massoth PC Programming Module which require minimum 2 Amps DC Power Supply.
$50 - In Stock




ESU 51957 21MTC Wired Adapter Board.png

ESU 58429 LokSound 5 DCC Sound Decoder with 21MTC Interface.  Super small 16mm x 30 mm size. Has 1.5 Amps motor capacity designed for HO & O Scale locomotives but could be used in small LGB locomotives such as the Olomana and Chloe Steamers, LGB Rail Trucks, etc.  must use the ESU 51957 21MTC Adapter Board with pre-soldered wires for easy decoder installation.
ESU 58429 Decoder - $85; ESU 51957 Adapter Board - $13.50  - In Stock

ESU 58315 LokSound 5L .png
ESU 5 L Decoder - Prewired Version2.jpg
ESU 53950  Adapter Board Screw Terminals .png

ESU 58315 LokSound 5 L  DCC/MM/SX/M4/RailComPlus.  3 Amp Sound Decoder with outstand sound quality.  Comes  with a Solder Terminals Adapter Board, or you can purchase the ESU 53950 Screw Terminals Adapter Board.  Sound File Will be Installed into Decoder from ESU Sounds Library.
  Size: 51mm x 25mm x 14mm
$170 - In Stock












MLT 80501022 POT with Knob 25mm.jpg

View of soldered wires installed on the Adapter Board for the LokSound 5 L Sound Decoder:  LGB Motor Block Wires; Headlight; Cab Light; Rear Light; Smoke Unit; Speaker.











ESU 53950 Adapter Board with Screw Terminals for LokSound L & LokPilot L Decoders.  For Use with Decoders: 59315 LokPilot 5L DCC/MM/SX/M4; 59325 LokPilot 5L DCC; 58315 LokSound 5L DCC/MM/SX/M4; 58325 LokSound 5L DCC Sound; 54399 LokSound V4.0 L DCC; 73399 LokSound Select L DCC Sound Decoder.
Size:  78mm x 26mm x 12mm

$23 - In Stock

ESU 5Fx Sound-only Decoder.png

MLT 80501022 Volume Control Board (POT).  Use this item if you want to connect a POT to your ESU LokSound decoder.  The center wire is soldered to the center solder pad on the decoder; the other two wires onto the other two solder pads.

$12 - In Stock












ESU 59325 LokPilot DCC Decoder.png

ESU 58219 LokSound 5Fx Sound-only DCC/DC Sound Decoder with 21MTC Connector.  No motor output, designed to use with locomotive, train cars to produce any sound downloaded from the ESU 5 Series Sound Library.  Although the LokSound 5 Fx itself does not have a motor output, it still "simulates" one. This is used for synchronization with the locomotive or motor car where ideally a "full-fledged" LokSound 5 decoder does its job. In the train set, this ensures that the brakes squeal occur at the same time or that the lamps switch the direction of travel at the same time.These DCC decoders can be used with LGB locomotives in DCC or DC Analog power (Max 28 volts input).  Note: ESU PowerPacks do not work on ESU decoders in DC Analog current, and there are no solder pad terminals for connecting a volume control board on these very small decoders.

Requires use of the 21MTC Adapter Board listed above.Comes with a 11 x 15mm sugar cube loudspeaker.
Size:  5.15mm x 5.5mm.
$65 - In Stock












ESU LokPilot-XL-V4_01 Power Decoder 4 Am

ESU 59325 LokPilot 5 DCC/RailComPlus.  Locomotive/Motor/Function Decoder, Pin-head comes with Solder Adapter Board.  Or, purchase ESU 53950 Screw Terminals Adapter Board.   4 Amp Motor Rating; BEMF; 11 Amplified Outputs; 4 Logic-level Outputs; 2 Servo Outputs; DCC with RailComPlus.

Size 51.8mm x 25.4mm x 14mm
$70 - In Stock

ESU Miniature Relay.jpg
ESU 54672 Power Pack Maxi.png
ESU Adapter Board Screw Terminals.png

ESU 53950 Adapter Board  with Screw Terminals for LokSound L & LokPilot L Decoders.  For Use with Decoders: 59315 LokPilot 5L DCC/MM/SX/M4; 59325 LokPilot 5L DCC; 58315 LokSound 5L DCC/MM/SX/M4; 58325 LokSound 5L DCC Sound; 54399 LokSound V4.0 L DCC; 73399 LokSound Select L DCC Sound Decoder.

Size:  76mm x 26mm x 11mm
$21 - In Stock









ESU 51959 Solder Adapter Board.png

ESU 54640 LokPilot XL V4.0  DCC/MM/SX/M4/RailComPlus.  4 Amp Locomotive/Motor/Function Decoder, Screw Terminals, Power Caps. With its high motor-output performance, 8 function and 4 servo channels as well as an integrated PowerPack it is perfectly suited for outdoor railway and large scales.
Size: 65mm x 25mm x 11mm
$76 - In Stock





ESU 51959 Adapter Board  with Solder Terminals for LokSound L & LokPilot L Decoders.  For Use with Decoders: 59315 LokPilot 5L DCC/MM/SX/M4; 59325 LokPilot 5L DCC; 58315 LokSound 5L DCC/MM/SX/M4; 58325 LokSound 5L DCC Sound; 54399 LokSound V4.0 L DCC; 73399 LokSound Select L DCC Sound Decoder.

Size:  62mm x 26mm x 11mm
$21 - In Stock









ESU Power Pack Mini-1.png
ESU Lighting Strip Power Pack.png
ESU Replacement 2-pin Terminal Block .png
ESU SwitchPilot.GIF
ESU SwitchPilot Extension.GIF
ESU SwitchPilot Devices for LGB 12010 EL

ESU 51963 Miniature Relay 1A 12 - 16 Volts.  Use for Activating Whistle & Bell Reed Switch Sounds with DCC Decoders & LGB Analog Sound Boards.  Ask for Copy of Wiring Diagram when Ordering.
$4 Each - In Stock
















ESU 54672 Power Pack Maxi energy storage device (Power Caps) for LokSound L V4.0, 5L, and 5 Series, and LokPilot 5, 5L, and 2x 5F/2.7v.  Note:  The Power Pack switches off automatically in Analog operating mode for technical reasons, so no power buffering is possible in Analog Mode.  Size:  27.5 mm x 15.7 mm x 13 mm
$55 - In Stock

ESU 54671 Power Pack Mini energy storage device (Power Cap) for LokSound 4, LokSound 5, and LokPilot 4 decoders.   For DCC use only, no power buffering is possible in DC Analog Mode. Size:    15.7 x 9.7 x 13 mm
$40 Each - In Stock

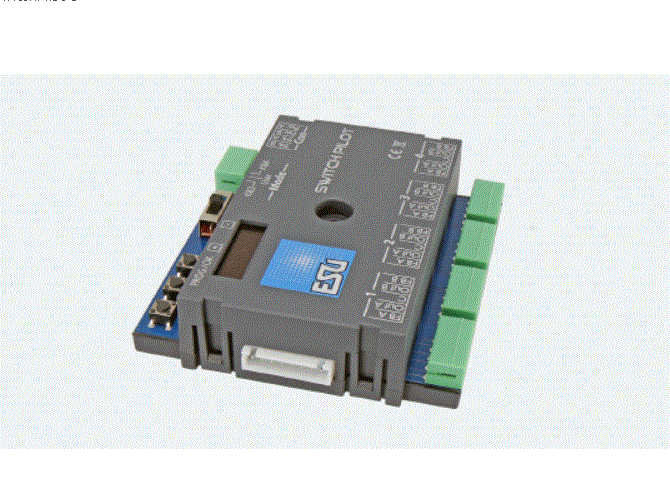

ESU 51830 SwitchPilot 3  V2.0, Accessory Decoder for 4 Twin Coils Magnetic, 2 x Servo, DCC/MM, 1A.
$40 - In Stock
ESU 51831 SwitchPilot 3 Plus Also Available

$65 - In Stock

ESU 51801 SwitchPilot Extension 4 twin-relays (DPDT) Output, 2A each, Use with SwitchPilot to Operate LGB Track Swtich Motors
$30 - In Stock

ESU 51830 SwitchPilot3  V2.0, Accessory Decoder for 4 Twin Coils Magnetic, 2 x Servo, DCC/MM, 1A.
ESU 51831 SwitchPilot 3 Plus Also Available

$40 - In Stock

ESU 54677 Pulsed Smoker.GIF

ESU 54677 Smoke Unit Dual Exhaust for Smoke Stack & Cylinders
$90 - In Stock




















ESU Replacement 2-Pin Terminal Block for CabControl and ECOS Command Stations and LokProgrammer.
$4.50 Each - In Stock

ESU 50710 Lighting Strip Power Pack - 2 Pack
$7 Each - In Stock

ESU 50119 DC Power Supply 7 Amps.png

ESU 50119 DC Power Supply 7 Amps 15 - 21 Volts
The newly developed power pack 50119 is furnished with the ESU Command Stations (ECOS and CabControl Digital Systems) and the ECOSBoost booster.  It can be used with any model trains accessories that require powerful DC power supply with a power output of 15 - 21 volts DC such as the LGB Throttles/Controllers.   The output voltage can be adjusted between 15V and 21V by a turn knob on the back of the unit and remains stable under load.  The output current has a maximum capacity of 7 Amps.   An integral, temperature controlled fan provides cooling, if necessary. The power pack automatically switches off in case of a short circuit or overload and restarts once the overload has been eliminated.

  A connector plug is provided for use with accessories using wire connections.
$80 - In Stock



ESU DCC COMMAND STATIONS

CABCONTROL DCC SYSTEM

ECOS DCC/M4/MOTOROLA/SELECTRIX SYSTEM






ESU CabControl DCC System.GIF
ESU CabControl DCC System-2.GIF
ESU 50703 Interior LED Light Strip.png





ESU 50703 Interior LED Light Strip for G Scale Passenger Cars.  Length 380mm; Width 15mm.  The brightness of the yellow and white LEDs can be adjusted separately to various color combinations; the installed Power Pack/Power Caps prevent lights from flickering.  The board can be shortened by breaking off sections from the right end to the desired length for your train car and the broken off sections can be used by running two wires from the main board to the individual sections.  It also comes with two red marker lights on one end of the board.  The board has a Digital Interface for inserting an 21MTC ESU 52621 LokPilot Fx v4.0 DCC Decoder for controlling an on/off and brightness features.  Supply Voltage DC/DCC 4 - 24 Volts; Constant Brightness from 6 Volts; Max. Current Consumption 90mA.   Use LGB Ball Bearing Wheels to provide power to this LED light strip.
$38
















ESU 50310 CAB CONTROL WIFI DCC SYSTEM.  Comes with Touch-Screen WIFI Throttle, 7A DC Power Supply Adjustable 15 - 21 Volts, and the WIFI Command Station - Everything you need to set up a DCC operated track layout for your DCC Decoder-equipped LGB locomotives. With the 7 amps DCC current it provides to your track layout, you can run multiple LGB locomotive consists and operate your LGB track switches through DCC switch decoders, all at the same time.  It also has a separate output terminal for a Programming Track where you can Read and Write CVs on your locomotive's DCC decoders.  Features:  Two Output Terminals, one for the  Track Layout & another for the Programming Track; the Railcom/RailcomPlus features automatically reads ESU Railcom-equipped decoders and then populates the command station automatically - No need to assign and use a locomotive address (CV1), or you can manually enter the locomotive into the system.
MSRP $500;  Your Price $400  - In Stock

ESu ECoS DCC Command Station.GIF

As a multi-protocol command station, ECoS supports DCC, Märklin® Motorola®, Selectrix® and the M4 data protocol. M4 drives and controls locomotives equipped with mfx® decoders without any restrictions. M4 is completely compatible. You can even continue to use almost all of your present loco decoders. ECoS is therefore the only digital command station worldwide that unifies 4 data protocols.  Features:  Two Output Terminals, one for the  Track Layout & another for the Programming Track; RailcomPlus automatically reads decoders with RailcomPlus and populates the command station - No need to assign a locomotive address (CV1).

With an ECoS you can run locos: via two integrated cabs with large, easy-grasp motor driven throttle knobs and nine precise click-function keys you control your locos. In combination with the touch screen, you can control up to 20 functions per engine.

ECoS controls turnouts and magnetic accessories: a large, graphical control panel provides you access for up to 1420 turnouts (DCC or Motorola® protocol).

With ECoS you can plan and control routes: simply put turnouts and magnetic accessories graphically in groups and switch them together. Routes will be activated either by feedback contacts or by key. You can even use s88 occupancy detectors or ECoSDetector feedback modules.

With ECoS you can operate shuttle trains very easily: put a rail contact at both ends of the track and ECoS will do the rest.  The ECoS built-in booster has so much power that, in most cases, you don‘t need additional ones.

Comes with an ESU 7 Amp 21 Volts DC Power Supply

For wireless use, you must purchase the ESU Mobile Controller II shown below.

MSRP $799.90;  Your Price $675 - Non- Stocked - Special Order Required



SPECIAL NOTE:   Want 12 Amps to your entire track layout, you can use a Massoth 8135501 DiMax 1202B 12 Amp Digital Booster ($550) and a Massoth 8312066 Booster CAN-Bus Cable ($30) to connect to the ESU CabControl or ECOS Digital Command Station.  Requires a separate DC Power Supply for the Massoth Booster  such as the Massoth 8135604 12 Amps 22 volts DC Switching Power Supply ($170) - Total for all three items $750.   See the details in the Massoth DCC Decoders & Components page.

ESU Wireless Controller II.GIF

ESU 50114 Mobile Controller II for Wireless Operation of the ECoS Command Station - Connects to y our home's WIFI Router or Set Up a Dedicated Wireless Router in Your Train Room or Outdoors.
MSRP $300;   Your Price $240 - In Stock
















ESU ECOS Boost.png

ESU 50012 ECOS BOOST   H4-Booster with 7.0 A continuous-load output. Outputs short circuit proof. Thermal overload protection. Galvanically isolated EcoSlink connection.  Integrated NMRA DCC BiDirection feeback detector with cutout device.  Integrated mfx® feedback device (Enabled only when used together with Märklin® central station®).  Operational modes:  Use with ESU ECoS or Märklin® central station®.   Supported protocols (depends from command station): NMRA DCC, Motorola®, Selectrix®, mfx®.  180 x 76 x 40 (7.09 x 2.99 x 1.75 inch).  CoSBoost  comes with its own 7 Amps continuous-load output, power supply 120-240VA, terminals for track- and programming connection, extensive instruction manual.
MSRP $289;  Your Price $230  - In Stock




MASSOTH DCC COMPONENTS FOR USE WITH ESU DCC COMMAND STATIONS



Massoth 1202B Digital Booster.png

Massoth 8135501 DiMax 1202B 12 Amp Digital Booster
Powerful state-of-the-art system.  Two separate power outlets feature 6 amps each offering enough power for two separate isolated track blocks on your model train layout; or, you can connect the output terminals together for 12 amps output the your track.   Use the Massoth 8312066 Booster CAN-Bus Cable ($30) to connect to a  Marklin CS3/CS3+ or ESU CabControl or ECOS Digital Command Station to provide 12 Amps current to your main track layout.  Requires a separate 12 Amp DC Power Supply for the Massoth Booster  such as the Massoth 8135604 12 Amps 22 volts DC Switching Power Supply ($170) shown on the Massoth DCC Decoders & Components page.

$550

Massoth Digital Booster Bus-Can Cable-2.png

Massoth 8312086 DiMax CAN-Bus Cable for Connecting the DiMax Digital Booster to the Marklin CS3/CS3+, ESU CabControl and ESU EcOS Command Stations
$30






Massoth 13 Amps DC Power Supply.png

Massoth 8135604 Switching Adjustable
24 Volts 13 Amps DC Power Supply.  Use to power the DiMax 12 Amp Central Station or DiMax 12 Amp Digital Booster.

$170





















PULSED SMOKE GENERATORS FOR USE WITH ESU DECODERS



massoth-pulsed-smoke-generator-for-round

Massoth 8415001 DCC Pulsed Smoke Generator.  Ask for a copy of my instructions on wiring this Smoker to Massoth XLS and ESU 5XL Sound Decoders.  Size: 54x42x30mm
$100



Massoth Pulse Smoker Rectangular.png

Massoth 8413502 Digital Pulse Smoke Generator Rectangular.  The pulsed high-performance smoke generator (New Item 2022) can be used autonomously in steam or diesel operation mode. Due to the direct track reception and integrated software decoder, control by digital address via the digital system is possible at any time, a separate decoder is no longer required. The integrated decoder takes over all necessary evaluations, a SUSI interface is therefore no longer available. By means of clock generator and bus connection for MASSOTH/LGB, the smoke generator can be integrated into many existing locomotives, if the required installation space is available. The filling quantity of the tank should be 4cm³ or maximum 6cm³ (best dosed with a pipette).
Size:
$90

Massoth Smoke Fluid.png

Massoth 8412501 Smoke Fluid 250ml
$16

                DCC SPECIALTIES RRampMeter IV - MEASURES DCC/DC/AC VOLTS & AMPS                                       "The Essential Tool" for Large G Scale Model Trains Hobbyists"



Accurately measures DCC, AC and DC Volts and Amps! DCC - 38.6 V, 18-20 A; DC - 38.6 V, 18-20 A; AC - 27.6 V, 18-20 A; PCB length 5.63"; Enclosure length

4", width 2", height 1.25"   The amazing RRampMeter designed for Model Railroaders by DCC Specialties does what no other meter can do! Easy walk-

around measurements of layout voltage drops, accurate booster output setup to optimum voltages for decoders and sound units.




$110


Measuring PWM Voltage - Manufacturer's Technical Response



The RRampmeter should accurately measure a PWM waveform.   After all, DCC is a form of PWM. However, the RRampmeter reads the TOTAL RMS value of the waveform, DC + AC. Your Fluke set to read AC blocks DC and is only measuring the AC component. Since the lights and smoke unit are going to respond to the DC value of the PWM (and I assume the PWM is on/off, so there is a DC component), you should measure these outputs with the Fluke meter set to DC.  One other thing to keep in mind is that the RRampmeter is designed to power itself from the input, so on a low power circuit such as a light output, the added load may affect the reading.   Make sure you are using the battery for power and not the input signal. Even with the battery, the RRampmeter will load the circuit more than the Fluke (25.4K vs 10 Meg). For this reason, the Fluke set to read DC might be the better choice.
